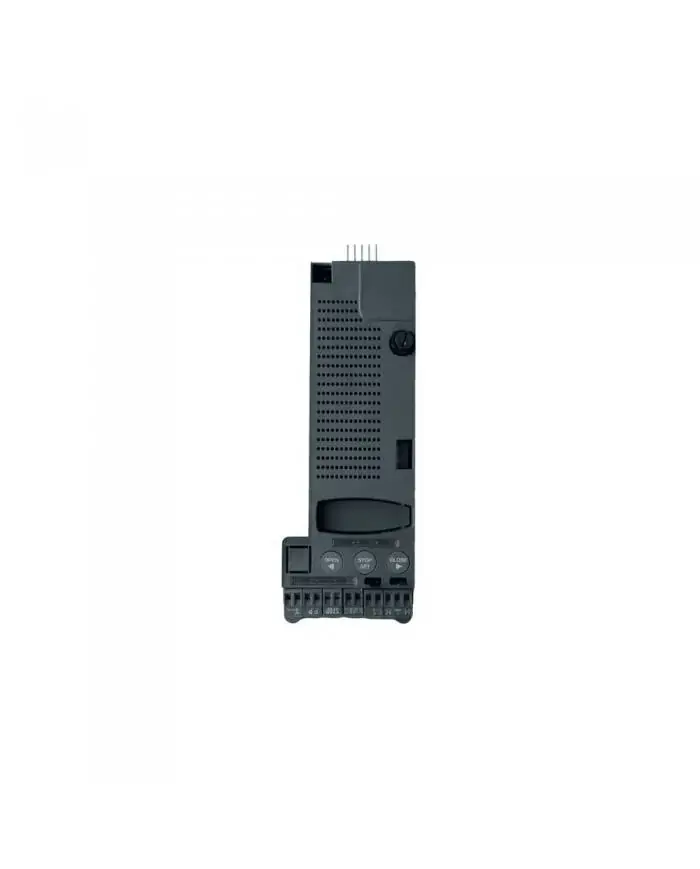

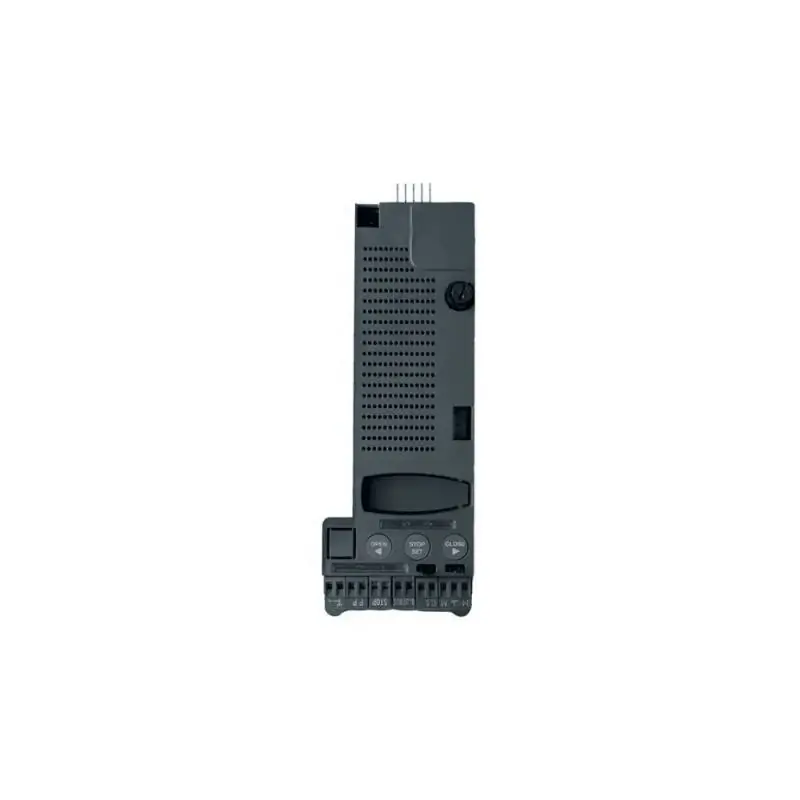

Nice WLA1 Motor Control Board

Nice Walky Control Board — WLA1 Motor Management Unit Replacement Part

Nice WLA1 is the original electronic control board manufactured for Nice Walky series articulated arm gate automation motors. The board is responsible for the complete electrical and logical management of the motor system: open/close cycle control, deceleration distance adjustment, communication with external safety devices, and remote control receiver integration are all handled through this board. The board converts 230V AC mains voltage into 24V DC motor supply, features an IP44 protection rating, and is protected against dust and water splashes. With an operating temperature range of -20°C to +50°C, it operates reliably in both harsh winter regions and outdoor installations exposed to intense summer heat. Limit settings, operating times, and safety delays can be easily configured via the onboard LED indicators and programming buttons. Photocell connection terminals, an external safety edge input, and a flashing light output are located directly on the board. A faulty control board typically manifests as the motor not operating at all, failing to move in a specific direction, or not responding to the remote control — in such cases, the board must be replaced.

Replacing the Nice WLA1 control board is of INTERMEDIATE difficulty. While removing the board from its slot and installing the new one is relatively straightforward, the existing cable connections must be correctly and sequentially connected to the terminals, followed by reprogramming the limit positions and deceleration parameters. It is recommended to carefully read the installation manual and have a basic level of electrical knowledge for these procedures; when in doubt, contacting an authorized Nice service technician is the most appropriate course of action.

This control board is a one hundred percent original replacement part manufactured by Nice S.p.A. Nice S.p.A. is a world-renowned manufacturer of gate, garage, and barrier automation systems, founded in Oderzo, Italy. As an original OEM part, full electrical and mechanical compatibility with Nice Walky 1024 and Nice Walky 2024 motors is guaranteed; the software incompatibility, parameter loss, or premature failure risks commonly encountered with third-party substitute boards are not a concern.
