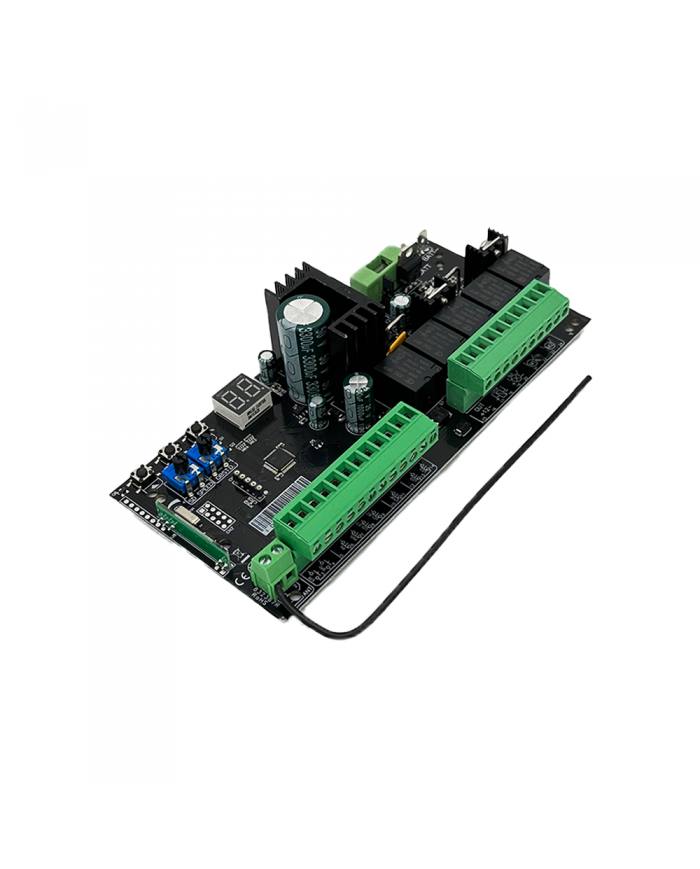

Busto DC200 Control Board

Busto DC200 Control Unit

Designed to maximize the performance and reliability of your automatic access systems, this universal control unit board is an equipped unit where you can operate all kinds of functions for all swing and sliding gate motors operating with 24V DC motor. With the magnetic lock feature, the lock mechanism connected to swing gates can be operated. Dual motor connection feature is available for double bladed motors. Busto DC200 control card has been developed with European standard components and meticulous production processes. Designed to meet all the needs of modern security and automation systems, this board features an advanced double-digit display and TUYA module socket. It is possible to make in-depth settings on the screen and can be integrated into any system and configured to meet any need. With all the necessary certifications, this controller guarantees reliable performance even for the most demanding applications in the industry.

Thanks to the ZX86 WiFi socket, Busto ZX86 module can be installed. Thanks to this module, which has a socket system and is directly integrated into the board, installation adjustments and operations such as on-off, scenario can be easily done via the TUYA application. In addition to making adjustments such as the activation of the automatic shutdown function, the duration of this function, the commands of the control buttons, the operating mode of the motor, this module is very useful for end users. You can start and stop the motor via the application via WiFi or you can organize scenarios such as turn on at a certain time and turn off at a certain time. gateYou can also get feedbacks (opening-closing-counter activated 8sec...) that you can follow through the application even if you don't see gate when it is opening, closing or when the automatic closing counter is activated.

Why Choose This Control Unit Board?

• Superior Quality and Reliability: %100 Manufactured with high quality components that have passed the AOI (Automatic Optical Inspection) test and comply with European standards. Guarantees long life and uninterrupted performance.
• Wide Compatibility: It offers a universal solution for sliding gate motors and swing gate motors with DC motors. In this way, you can use a single type control unit in your different systems.
• Intelligent Motion Control: The integrated soft start and soft stop function provides a quieter and more comfortable operating experience while extending the life of your motors. Path recognition function is available, you can set where to stop on the trimpod after path recognition.
• Dual Photocell Connection: Double photocell connection option is available for situations where more than one photocell is required.
• Double Motor Connection: Due to the two-winged structure of swing gates, there is a double motor connection feature.
• Battery Integration: Battery connection can be provided. In this way, gate can continue to work in case of power outages. When the electricity is restored, the batteries recharge themselves and provide recharging. With its low power consumption feature in standby mode, it extends the life of the batteries after the interruption.
• WiFi Socket: Thanks to the ZX86 WiFi socket, motor settings can be provided via the TUYA Smart mobile application and scenarios such as motor on-off, flasher on-off, on-off at certain hours can be used.
• Auto Power Off Function: Automatic shutdown function is available, seconds can be set via trimpod.
• Easy Integration: Thanks to the simplified installation system, it offers a fast and seamless integration and adapts to the timeline of your project.
• Built-in Control Receiver: Thanks to the built-in control receiver integration, up to 250 Busto controls can be defined. It can also be integrated into the desired remote control by connecting different receivers to the Open end.
• Certified Assurance: With all necessary quality and safety certificates, it proves its compliance with international standards.

Technical Specifications

• Operating Voltage: 24V AC
• Compatibility: Designed for AC current driven sliding gate motors and swing gate motors; suitable for universal use.
• Motor Output Capacity: Maximum 8 A x2
• Flasher Output Capacity: Maximum 250W
• Operating Temperature Range: --20°C to +80°C
• Standby Power Consumption: 800mW (minimum energy consumption)
• Installation: Easy and fast integration with simplified handling and installation system.
• Dimensions (Width x Length x Height): 20 cm x 10 cm x 6 cm
• Production Standard: %100 AOI-tested production and high quality components according to European standards.

Optimize the efficiency, safety and operational lifetime of your automated access systems with this controller board. If you would like more information about the product or would like to benefit from our consultancy service for your specific needs, you can contact our team of experts. Below you can view popular products where the product works flawlessly and tests are provided. If your product model is one of the following, you can get the product and use it in full performance with a perfect installation.

Some Popular Product Models Offering Seamless Compatibility

• BFT Deimos A600
• BFT Ares 1000, 1500
• Nice Robus 400
• Nice Robus 600 (Old Case)
• Nice Robus 1000
• Nice Run 1500, 2500I
• Nice Road 400
• DEA Livi 500
• DEA Livi 1000
• DEA Livi 600N
• TAU T-ONE 4B
• TAU T-ONE 6B
• TAU T-ONE 10B
