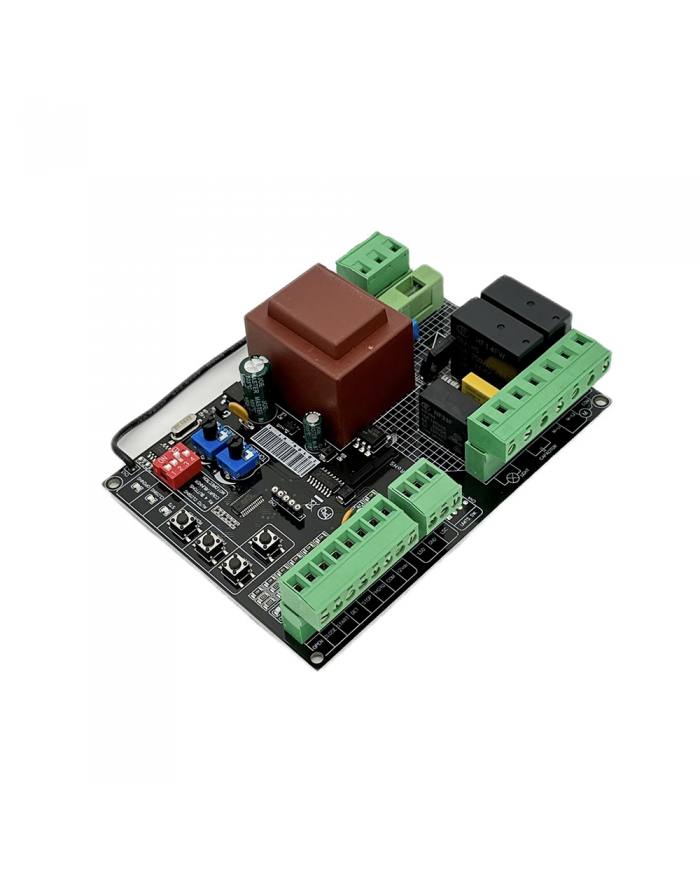

Busto BC/AC Control Board

Busto BCAC Control Unit

Designed to maximize the performance and reliability of your automatic access systems, this universal control unit board offers a comprehensive solution for sliding gate motors, barriers and shutters. Developed with European standard components and rigorous manufacturing processes, this product is optimized to meet all the expectations of modern security and automation systems. With all the necessary certifications, this control unit promises reliable performance even for the most demanding applications in the industry.

Thanks to the ZX86 WiFi socket, Busto ZX86 module can be installed. Thanks to this module, which has a socket system and is integrated directly into the board, you can start and stop the motor via WiFi via the application or organize scenarios such as on at a certain time and off at a certain time. gateYou can also receive feedbacks (opening-closing-counter activated 8 seconds...) that you can follow via the application even if you do not see gate when it is opening, closing or when the automatic shutdown counter is activated.

Why Choose This Control Unit Board?

• Superior Quality and Reliability: %100 Manufactured with high quality components that have passed the AOI (Automatic Optical Inspection) test and comply with European standards. Guarantees long life and uninterrupted performance.
• Wide Compatibility: It offers a universal solution for sliding gate motors and barriers operating with AC current. In this way, you can use a single type control unit in your different systems.
• Intelligent Motion Control: The integrated soft start and soft stop function provides a quieter and more comfortable operating experience while extending the life of your motors. Path recognition function is available, you can set where to stop via the trimpod after path recognition.
• WiFi Socket: Thanks to the ZX86 WiFi socket, scenarios such as motor on-off, flasher on-off, on-off at certain hours can be used via the TUYA Smart mobile application.
• Auto Power Off Function: Automatic shutdown function is available, seconds can be set via trimpod.
• Easy Integration: Thanks to the simplified installation system, it offers a fast and seamless integration and adapts to the timeline of your project.
• Built-in Control Receiver: Thanks to the built-in control receiver integration, up to 190 Busto controls can be defined. It can also be integrated into the desired remote control by connecting different receivers to the Open end.
• Certified Assurance: With all necessary quality and safety certificates, it proves its compliance with international standards.

Technical Specifications

• Operating Voltage: 220V AC
• Compatibility: Designed for AC current operated sliding gate motors, barriers and shutters; suitable for universal use.
• Motor Output Capacity: Maximum 750W
• Flasher Output Capacity: Maximum 250W
• Operating Temperature Range: --20°C to +60°C
• Standby Power Consumption: 1W (minimum energy consumption)
• Installation: Easy and fast integration with simplified handling and installation system.
• Dimensions (Width x Length x Height): 16 cm x 12 cm x 6 cm
• Production Standard: %100 AOI-tested production and high quality components according to European standards.

Optimize the efficiency, safety and operational lifetime of your automated access systems with this controller board. For more information about the product or if you would like to benefit from our consultancy service for your specific needs, please contact our team of experts.
