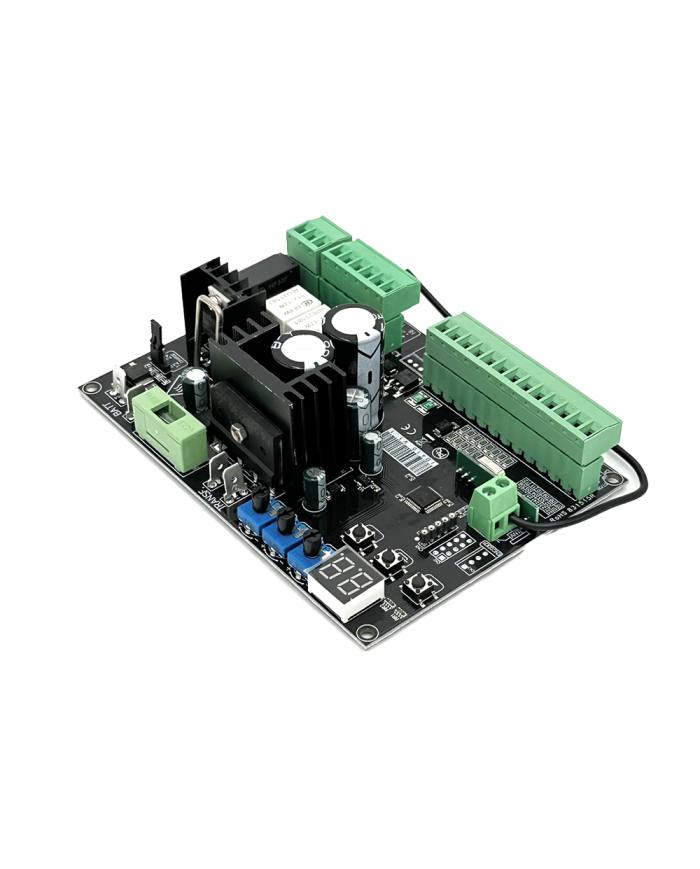

Busto DC410 Control Board

Busto DC410 Control Unit

Designed to maximize the performance and reliability of your automatic access systems, this universal controller board offers a detailed solution for the finest adjustments to sliding gate motors and barriers. Busto The DC410 control board has been developed with European standard components and rigorous manufacturing processes. Thanks to the intelligent obstacle recognition function, the device reacts automatically when it encounters an obstacle and stops in a way that does not damage the obstacle. In addition, the power level applied to the obstacle is adjustable. An integrated battery ensures long and uninterrupted operation of the device. With only 800 mW energy consumption in standby mode, the system is optimized for energy efficiency. It is designed to meet all the needs of modern security and automation systems. With all the necessary certifications, this control unit promises reliable performance even for the most demanding applications in the industry.

Thanks to the ZX86 WiFi socket, Busto ZX86 module can be installed. Thanks to this module, which has a socket system and is directly integrated into the board, installation adjustments and operations such as on-off, scenario can be easily done via the TUYA application. In addition to making adjustments such as the activation of the automatic shutdown function, the duration of this function, the commands of the control buttons, the operating mode of the motor, this module is very useful for end users. You can start and stop the motor via the application via WiFi or you can organize scenarios such as turn on at a certain time and turn off at a certain time. gateYou can also get feedbacks (opening-closing-counter activated 8sec...) that you can follow via the application even if you don't see gate when it is opening, closing or when the automatic shutdown counter is activated.

Why Choose This Control Unit Board?

• Superior Quality and Reliability: %100 Manufactured with high quality components that have passed the AOI (Automatic Optical Inspection) test and comply with European standards. Guarantees long life and uninterrupted performance.
• Wide Compatibility: It offers a universal solution for sliding gate motors and barriers operating with DC current. In this way, you can use a single type control unit in your different systems.
• Intelligent Motion Control: The integrated soft start and soft stop function provides a quieter and more comfortable operating experience while extending the life of your motors. There is a path recognition function, you can set where to stop via the trimpod after path recognition.
• Battery Integration: Battery connection can be provided. In this way, gate can continue to work in case of power outages. When the electricity is restored, the batteries recharge themselves and provide recharging. With its low power consumption feature in standby mode, it extends the life of the batteries after the interruption.
• WiFi Socket: Thanks to the ZX86 WiFi socket, motor settings can be provided via the TUYA Smart mobile application and scenarios such as motor on-off, flasher on-off, on-off at certain hours can be used.
• Auto Power Off Function: Automatic shutdown function is available, seconds can be set via trimpod.
• Easy Integration: Thanks to the simplified installation system, it offers a fast and seamless integration and adapts to the timeline of your project.
• Built-in Control Receiver: Thanks to the built-in control receiver integration, up to 250 Busto controls can be defined. It can also be integrated into the desired remote control by connecting different receivers to the Open end.
• Certified Assurance: With all necessary quality and safety certificates, it proves its compliance with international standards.

Technical Specifications

• Operating Voltage: 24V DC
• Compatibility: Designed for sliding gate motors and barriers operating with DC current; suitable for universal use.
• Motor Output Capacity: Maximum 16A
• Flasher Output Capacity: Maximum 250W
• Operating Temperature Range: --20°C to +80°C
• Standby Power Consumption: 800mW (minimum energy consumption)
• Installation: Simplified operation, easy and fast integration with the display and installation system.
• Dimensions (Width x Length x Height): 20 cm x 15 cm x 14 cm
• Production Standard: %100 AOI-tested production and high quality components according to European standards.

Optimize the efficiency, safety and operational lifetime of your automated access systems with this controller board. If you would like more information about the product or would like to benefit from our consultancy service for your specific needs, you can contact our team of experts. Below you can view popular products where the product works flawlessly and tests are provided. If your product model is one of the following, you can get the product and use it in full performance with a perfect installation.

Some Popular Product Models Offering Seamless Compatibility

• BFT Deimos A600
• BFT Ares 1000, 1500
• Nice Robus 400
• Nice Robus 600 (Old Case)
• Nice Robus 1000
• Nice Run 1500, 2500I
• Nice Road 400
• DEA Livi 500
• DEA Livi 1000
• DEA Livi 600N
• TAU T-ONE 4B
• TAU T-ONE 6B
• TAU T-ONE 10B
