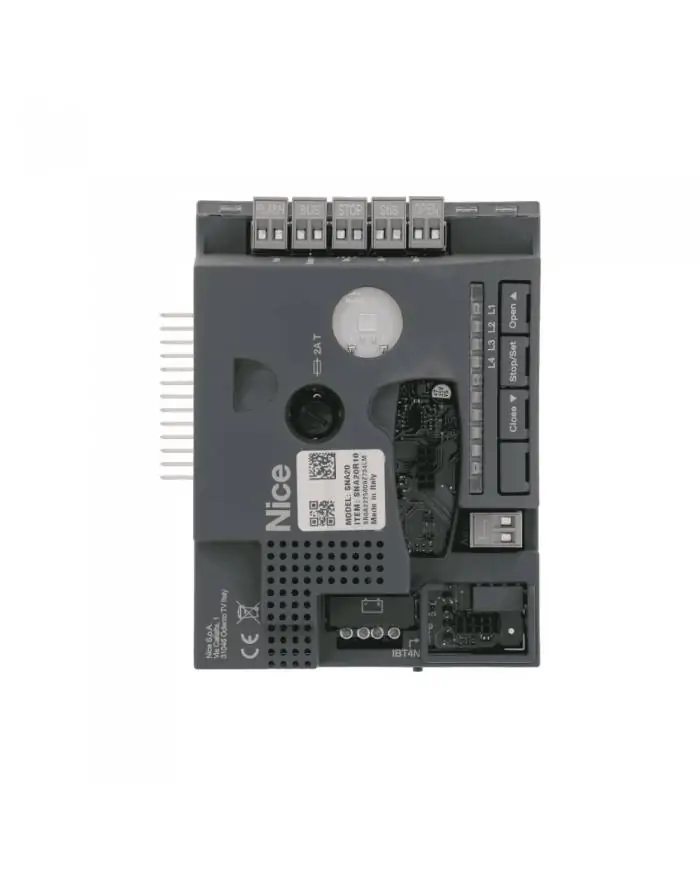

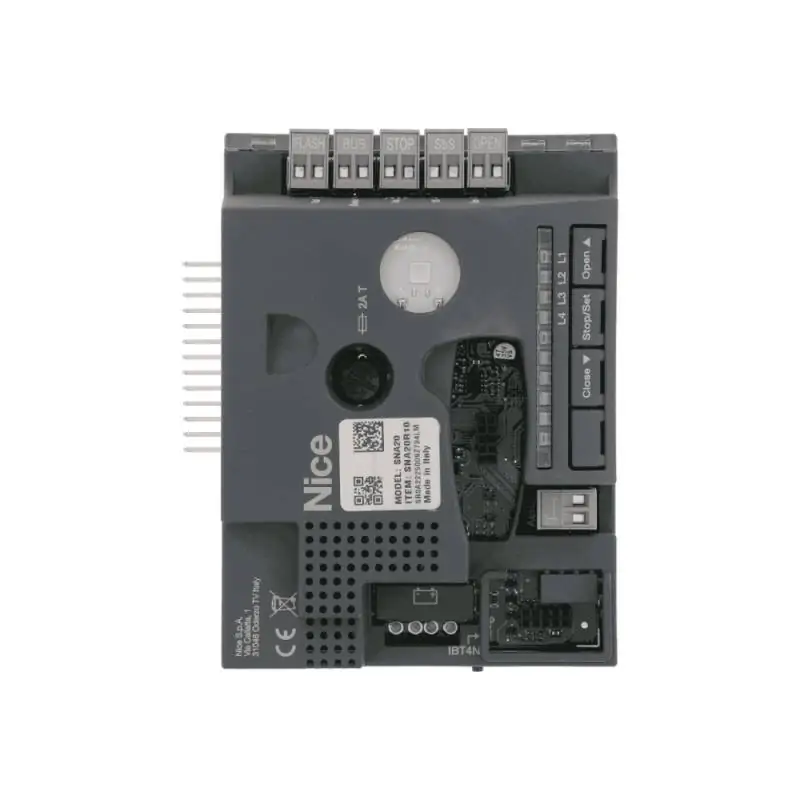

Nice SPSNA20R10 Control Board (Spin 23 Compatible)

Nice SPSNA20R10 Control Board — Spin 23 Garage Door Motor Control Unit Replacement Part

Nice SPSNA20R10 is the original electronic control board manufactured for Nice Spin 23 sectional garage door motor systems. The board's input voltage is 230V AC and the motor driver output is configured at 24V DC; this design enables both quiet operation and advanced safety management through low-voltage motor control. The board features a photocell input, external safety device connection and flasher lamp output; with an IP44 protection rating it is resistant to dust and water splashes, and can operate reliably in ambient conditions ranging from -20°C to +50°C. Control functions include soft start/soft stop, automatic closing time adjustment, obstacle detection with reverse movement, and partial opening (pedestrian mode); all these parameters can be programmed via the buttons and LED indicators on the board. Since a faulty, burnt or physically damaged control board will bring the entire automation system to a halt, replacing it with the correct spare part is of critical importance.

Replacing the Nice SPSNA20R10 control board is rated INTERMEDIATE difficulty. The existing cable connections on the board must be photographed before removal, then reconnected to the identical terminal points on the new board. In addition, since the new board may require limit point and force sensitivity calibration upon first startup, users without experience in basic automation systems are advised to seek authorised technical service support.

This control board is a fully genuine replacement part manufactured by Nice S.p.A. Based in Italy, Nice has been a globally recognised manufacturer in the field of gate, barrier and automation systems since 1993. As the SPSNA20R10 is an OEM component designed to Nice's own production standards, it fully meets the original performance and safety specifications of your system, eliminating the risks of motor damage and security vulnerabilities that counterfeit or incompatible boards may cause.
