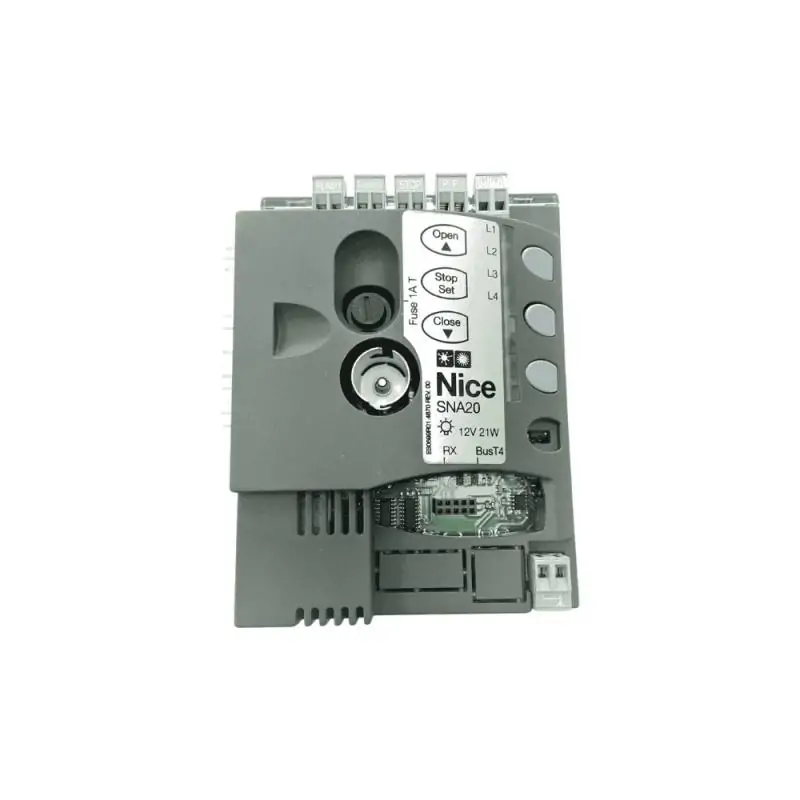

Nice SNA20 Control Board (SPIN21 / SPIN22 Compatible)

Nice SNA20 Spin Motor Control Board — Garage Door Automation System Mainboard

Nice SNA20 is an original replacement control board manufactured for Nice Spin series sectional garage door motors. This board is the central processing unit responsible for all electronic management of the motor; it receives 230V AC mains voltage and powers and controls the motor with a 24V DC output. With an IP44 protection rating, the board is resistant to dust and water splashes; thanks to its wide operating temperature range of -20°C to +50°C, it operates reliably in both harsh winter conditions and high-temperature environments. The terminal connections on the board support integration of photocells, external safety sensors, and warning flashers; advanced functions such as slow start and slow stop, automatic reverse movement upon obstacle detection, adjustable automatic closing time, and partial opening mode for pedestrian access are built into the board at the hardware level. Failure of the control board manifests as symptoms such as the motor not operating at all, failure to respond to the remote control, or safety functions becoming disabled, in which case replacement of the board becomes necessary.

Replacing this spare part is of MEDIUM difficulty level. During board replacement, attention must be paid to the terminal positions of the existing cable connections, and parameters such as automatic closing time and encoder pairing must be reconfigured using the programming buttons on the board. Photographing the wiring diagram and noting the cable layout before disassembly significantly reduces the risk of errors after installation. A technician with basic electrical knowledge can perform this task without difficulty; however, careful work is recommended, as connecting cable ends to incorrect terminals may damage electronic components. It offers direct drop-in replacement compatibility with Nice SPIN21 and Nice SPIN22 motor models.

This control board is an original OEM spare part manufactured by Nice S.p.A. Nice S.p.A. was founded in 1993 in Oderzo, Italy, and is one of the world's leading Italian manufacturers in the field of gate and barrier automation systems. The use of original parts ensures that the motor system continues to operate at factory performance standards and eliminates the risks of incompatibility, premature failure, or warranty cancellation that may be caused by aftermarket boards.
