Nice NDCC2000 D-Pro Action Control Board

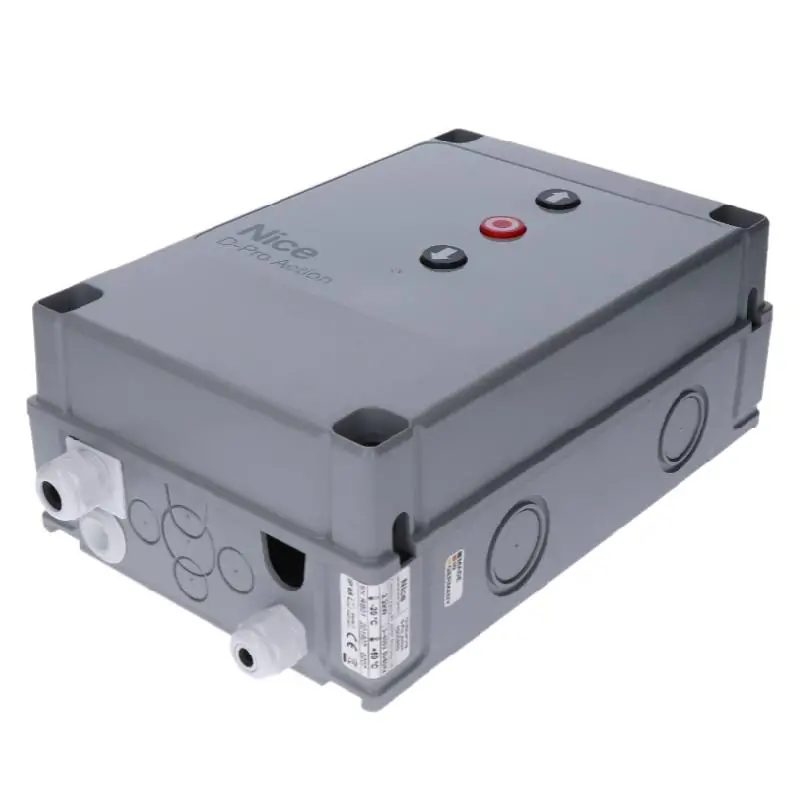

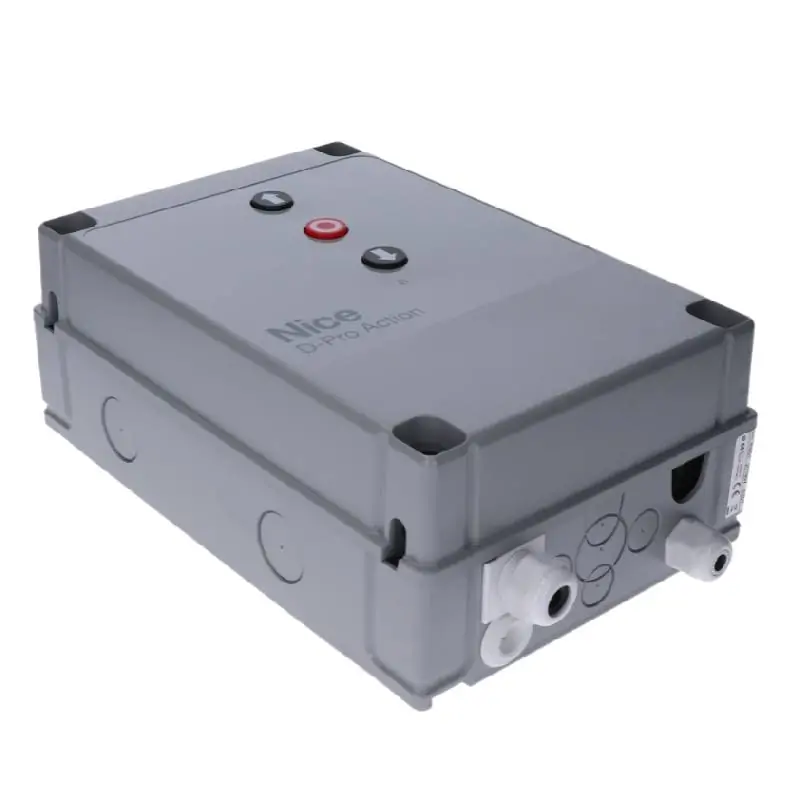

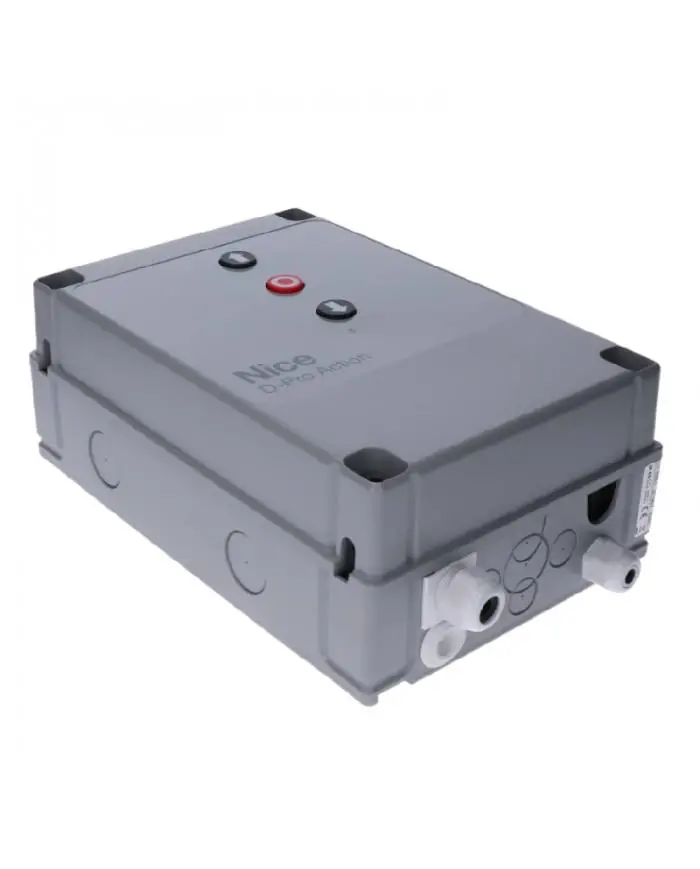

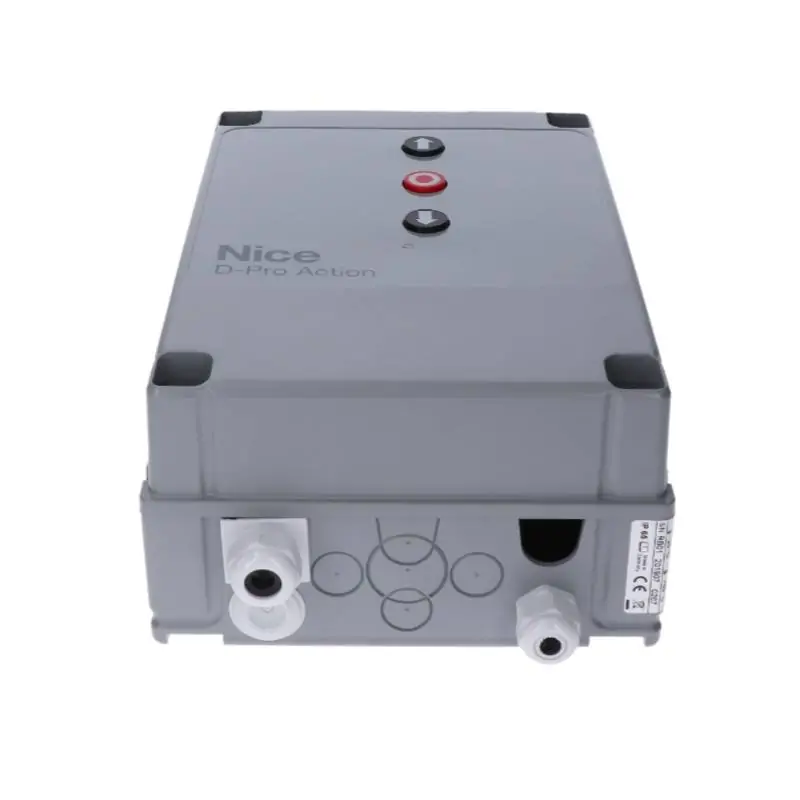

Nice NDCC2000 Control Board – D Pro Action Sectional Door Control Unit

Nice NDCC2000 is a professional control board unit developed for industrial sectional door automation systems. Fully compatible with the SD motor series, this board operates at a mains voltage of 3×400 V AC / 50 Hz and supports a maximum motor power of 2.2 kW. The control circuit is powered by 24 V DC, and the output section has a maximum current capacity of 0.6 A. Thanks to its IP65 protection rating, it offers high resistance against dust and water splashes, and can operate continuously across a wide temperature range of -20°C to +50°C. The digital display on the unit shows the door position and fault codes in real time, providing field technicians with rapid diagnostic capability. With a standby consumption of less than 4 W, the board also meets industry standards in terms of energy efficiency. Weighing 3.5 kg with a compact design, the NDCC2000 is compatible with both mechanical and electronic limit switch motors, serving as a reliable control centre in both sliding and industrial sectional door applications.

Replacing the NDCC2000 control board is of MEDIUM difficulty. Since the terminal connections on the board follow a standard terminal block layout, removing the existing board and installing the new one requires basic electrical knowledge. However, the parameter and function settings on the board must be reconfigured via the digital display; it is strongly recommended to refer to the original commissioning documents and user manual to correctly enter the limit switch positions, brake control parameters, and integrated socket receiver settings of the existing system. For this reason, having the procedure carried out by an experienced automation technician will eliminate the risk of incorrect configuration.

This control board is an original OEM spare part manufactured by Nice S.p.A. Based in Italy, Nice S.p.A. is a well-established manufacturer recognised worldwide in the field of door and barrier automation systems; the NDCC2000 is offered to the market under the brand's quality standards and original product warranty. The use of original parts ensures the highest level of system performance and safety compliance while minimising the risk of long-term failure.
