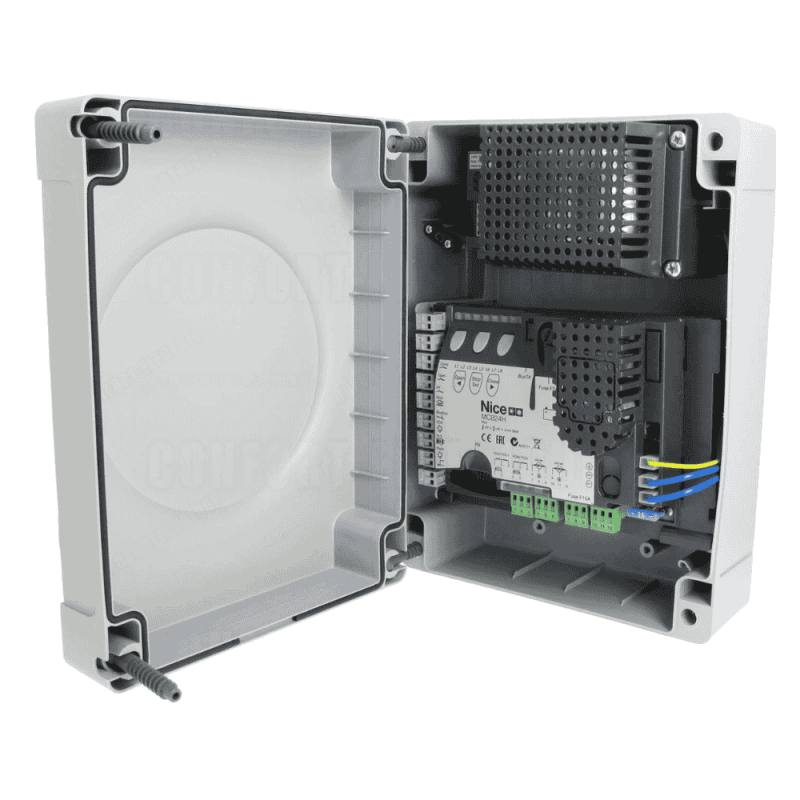

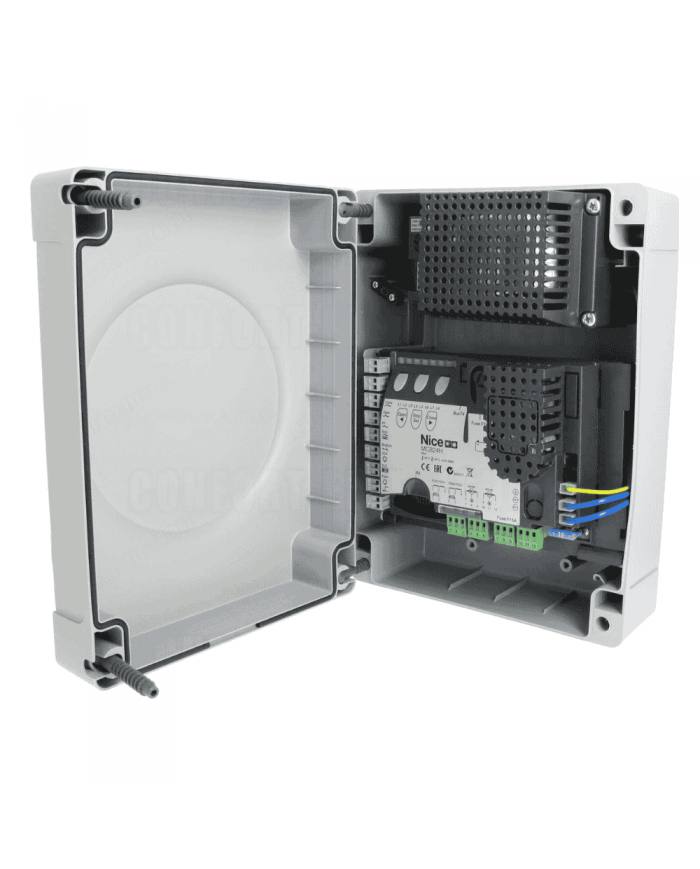

Nice MC824HR10 Control Board

Nice MC824HR10 Control Board — Toona and Wingo Series 24V DC Motor Control Unit

Nice MC824HR10 is the original control board used in Nice's extensive range of 24V DC articulated arm, hinged arm, and underground motor series, most notably the Toona 5024 HS and Wingo 3524 HS. The board operates on a 230V AC ±10% mains supply and delivers an optimized 24V DC output voltage to the connected motors, with a maximum supported motor power of 200W. Thanks to its IP54 protection rating, it can be safely used in outdoor conditions against dust and water splashes; the operating temperature range is between -20°C and +50°C. The board features encoder feedback support, an integrated socket for the Nice BlueBus accessory line, a Nice OXI receiver socket input, and an external battery connection (compatible with the PS124 battery model). Parameter configuration via the O-View programming device and full integration support with the YuBii smart home ecosystem are also standard features of this board. Control board failure manifests through symptoms such as the motor not operating at all, incomplete gate movement, magnetic limit detection errors, or accessory communication interruptions, at which point replacing the board becomes necessary.

Replacing the Nice MC824HR10 control board is of INTERMEDIATE difficulty. The cable sockets on the board feature a standard connector design, which significantly reduces the risk of incorrect wiring; however, the DIP switch or software parameters from the old board must be correctly transferred to the new board, BlueBus address assignment must be reconfigured, and encoder calibration must be completed. The O-View programming device or a qualified technical service is recommended for these procedures; incorrect parameter input may cause the motor to fail to recognize the gate limits and result in mechanical strain.

This control board is an original OEM spare part manufactured by Nice S.p.A. Italy-based Nice S.p.A. has been one of Europe's leading automation system manufacturers since 1993, and the MC824HR10 is an original component subject to Nice's own manufacturing standards and compatibility tests, covered by a 2-year official manufacturer warranty. Since the use of aftermarket or third-party boards may cause BlueBus communication errors, encoder incompatibility, and loss of warranty, choosing the original Nice MC824HR10 board is critically important for system continuity.
