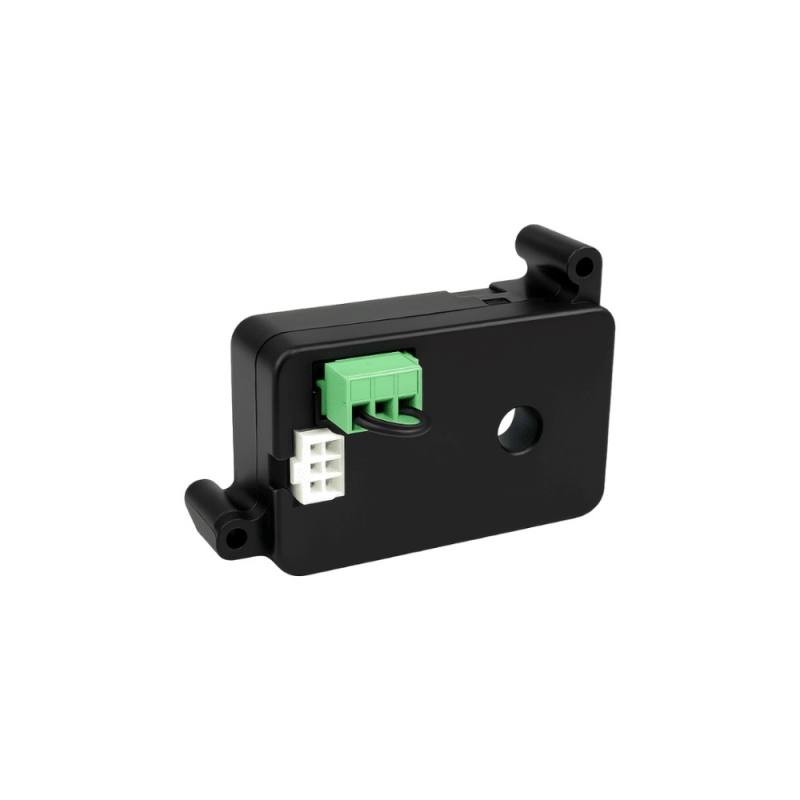

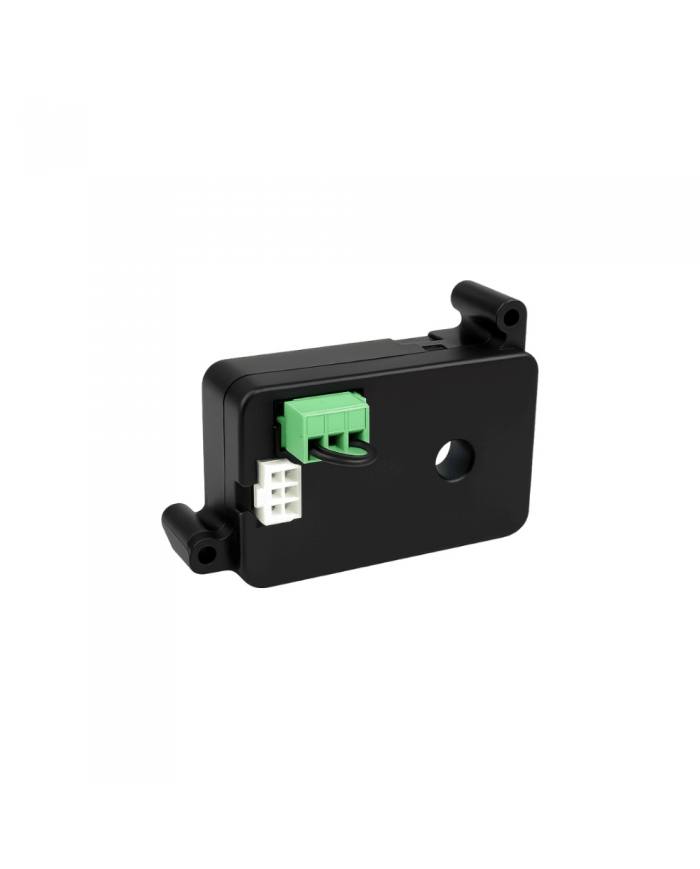

Nice ENAS003 Encoder

Nice ENAS003 Encoder Spare Part – SD 100 / SD 140 Motor Position Sensor

Nice ENAS003 is an original incremental encoder based on magnetic/optical principles, fully compatible with Nice brand industrial SD 100 and SD 140 series motors. The encoder is designed to transmit the motor shaft's rotation angle, speed information, and direction of movement to the control board, generating quadrature wave signals via A, B, and optional Z channels. The typical supply voltage range is 5 V DC – 24 V DC, and signal outputs are TTL/HTL compatible. This encoder is a critical safety and precision component that prevents motor overload, unlimited movement, and incorrect positioning. It must be replaced in cases of mechanical wear from heavy use over time, cable damage, or when the control board fails to read the encoder signal; otherwise, motor control drops to open loop and the automation system cannot operate safely.

Replacing this spare part is of MEDIUM difficulty. Since the encoder is mounted directly onto the motor shaft or coupling, disassembly and reassembly require a certain level of technical knowledge. In particular, the shaft centering tolerance and correct positioning of the body mounting flange are critical; improper alignment can cause vibration and signal errors. Correct matching of the A, B, Z, Vcc, and GND pins on the connection socket and signal verification via the control unit after installation are mandatory. For this reason, it is recommended that the replacement be carried out by a technician familiar with automation systems and capable of using basic measuring instruments.

This encoder is an original OEM spare part manufactured by Nice S.p.A. Nice is headquartered in Oderzo, Italy, and is one of Europe's leading manufacturers of door and barrier automation systems. The use of original parts ensures full compliance with the factory performance values of SD series motors, seamless communication with the control board, and continued coverage under the product warranty offered by Nice. Unlike aftermarket encoders, the original Nice ENAS003 has undergone compatibility testing with SD motor electronics and provides long-lasting, reliable operation.
