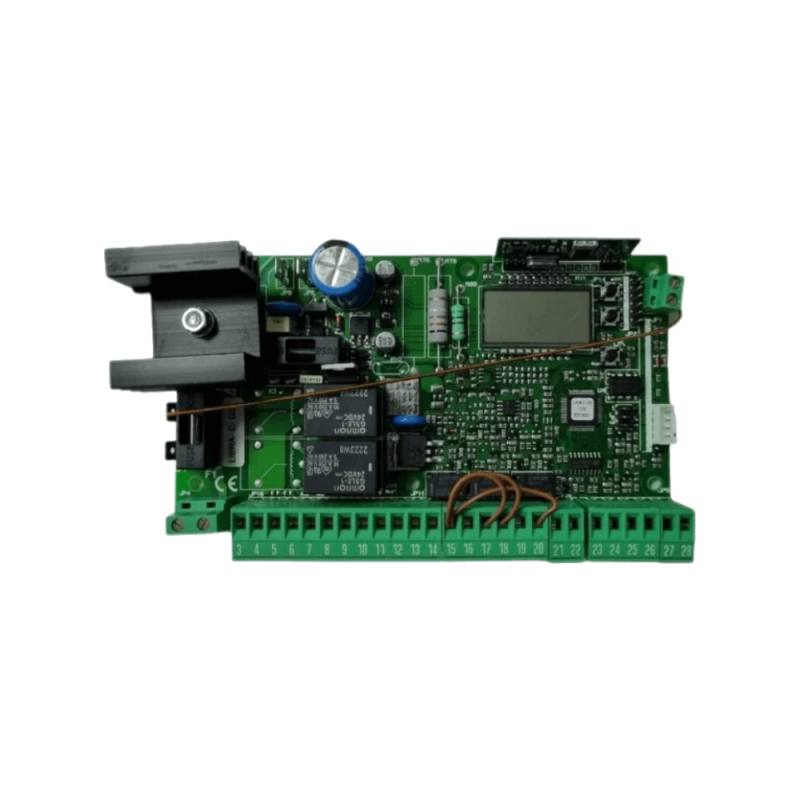

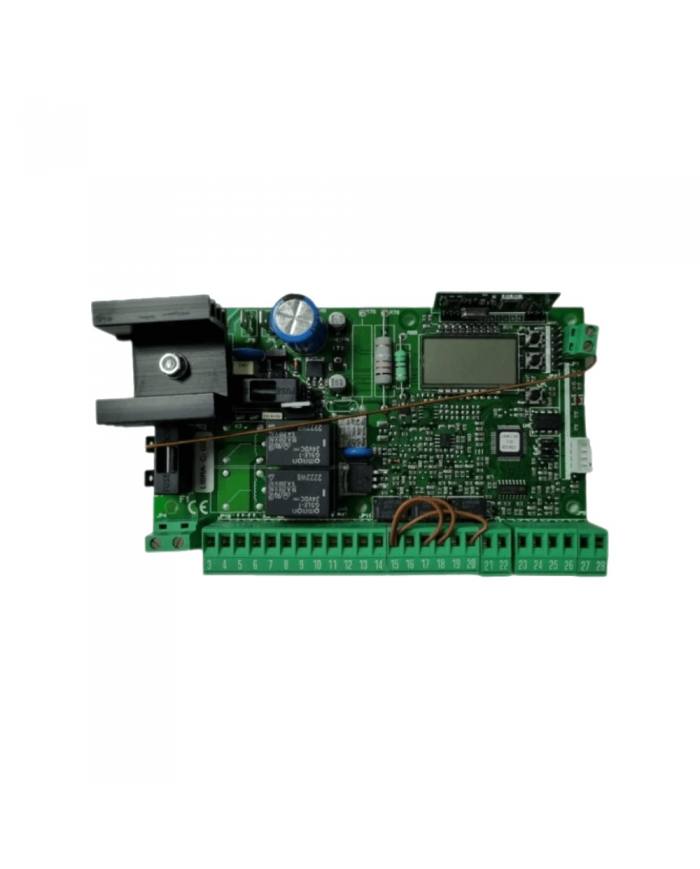

BFT MERAK BG S Control Board (Compatible with Giotto 30S BT / 60S BT)

BFT Giotto Barrier Control Board — MERAK BG S Replacement Control Unit

BFT MERAK BG S is the genuine electronic control board manufactured for BFT Giotto 30S BT and Giotto 60S BT series automatic barrier systems. The board internally processes the 230V AC mains voltage to directly control the barrier's 24V DC motor. Parameters such as automatic closing time, stepped speed control, slow start/slow stop profiles, and step-by-step operating mode can be easily adjusted via the LCD display and keypad located on the control panel. The board incorporates all standard safety and accessory inputs including photocell, magnetic loop detector, stop/start, safety edge, and traffic light; thanks to its IP54 protection rating, it operates reliably against moisture and dusty environments inside the enclosure. The integrated D-Track intelligent torque monitoring technology instantly detects possible obstacles during the movement of the barrier arm, ensuring the system stops safely. The operating temperature range is between -20°C and +60°C, providing reliable performance at car park, plaza, logistics facility, and residential complex entrances with heavy traffic flow. This board is used as a direct replacement when the existing control board is damaged, burnt, has suffered a program loss, or is not responding to safety inputs.

Replacing the MERAK BG S control board is of MEDIUM difficulty. Since the connection points of the board inside the enclosure are terminal block type, cable removal and insertion can be performed with a standard screwdriver; however, it is of great importance to photograph the existing cable wiring diagram and note the DIP switch and parameter settings on the board before installation. After the new board is installed, the automatic closing time, obstacle detection sensitivity, and accessory output configurations must be reprogrammed via the LCD menu. For this reason, it is recommended that the procedure be carried out by an authorized service with technical knowledge or accompanied by a technician experienced in automation systems; incorrect terminal connections can cause permanent damage to the board or the motor.

This control board is an original product of BFT S.p.A. BFT is a well-established gate, barrier, and car park automation system manufacturer that has been operating since 1981, headquartered in Schio, Italy. The MERAK BG S is an OEM control board developed specifically for BFT's own product family and cannot be substituted with compatible or third-party products. Being a genuine BFT spare part, it guarantees full electrical and software compatibility with Giotto series barriers and is covered by a 2-year official BFT warranty.
