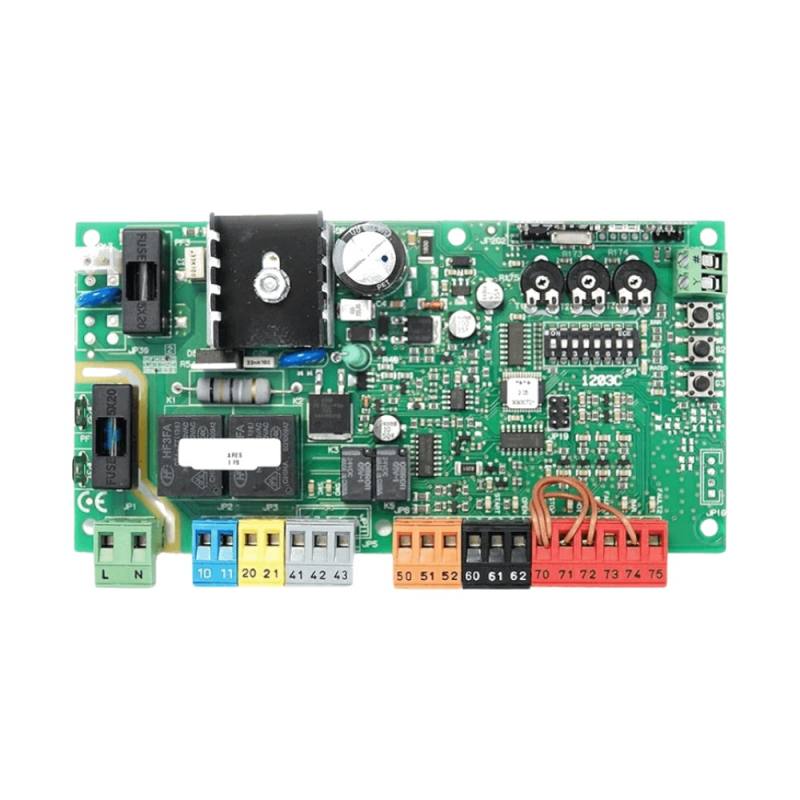

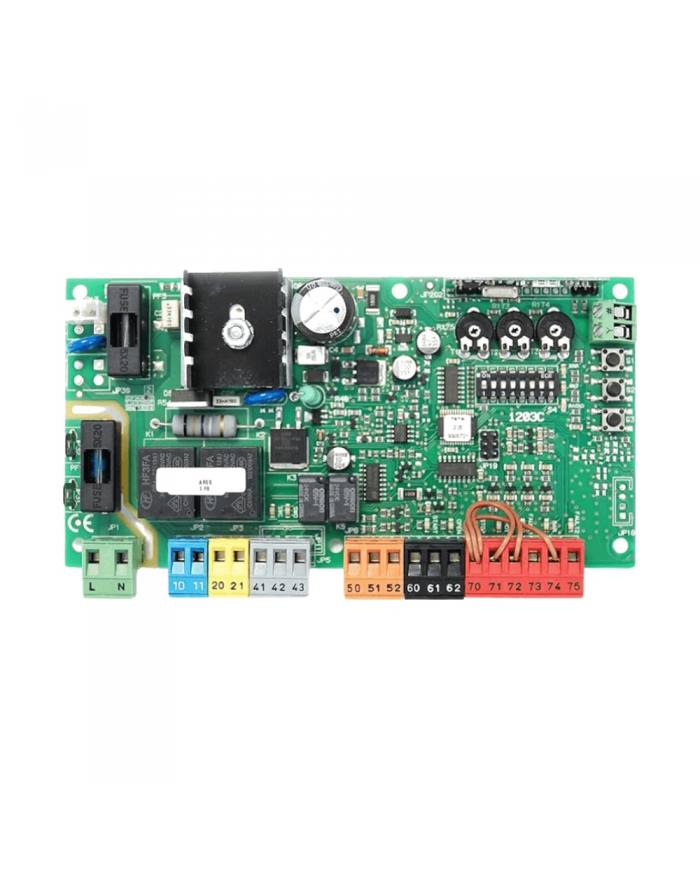

BFT Ares BT A Electronic Control Board (24V DC Control Panel Compatible with Ares BT A1000 / A1500)

BFT Ares BT A Control Board — 24V DC Sliding Gate System Electronic Control Panel

BFT Ares BT A Control Board Unit is the original electronic control panel manufactured for BFT Ares BT A1000 and BFT Ares BT A1500 sliding gate motors. The board processes 230V AC mains voltage internally and delivers 24V DC output to the motor, enabling precise electronic speed and torque control. With an IP54 protection rating, its dust- and splash-resistant design ensures long-term reliability in outdoor installations. The operating temperature range of -20°C to +60°C guarantees stable performance even under harsh climate conditions. The board features integrated soft-start/soft-stop functionality, an automatic closing timer, the D-Track torque management algorithm, and an obstacle detection circuit. Comprehensive connection points — including photocell inputs, a stop (STOP) input, a start input, a flasher output, an electromechanical lock output, and an auxiliary light output — allow all safety and automation accessories of the system to be managed from a single board. Since a faulty or damaged control board renders the gate system completely non-functional, replacement with an original board is essential.

Replacing this control board is rated at MEDIUM difficulty. Removal of the existing board can be carried out with standard hand tools; however, commissioning the new board requires all cable connections to be correctly re-terminated, and DIP switch or trimmer settings (automatic closing time, deceleration distance, torque limit) to be configured according to the original system. Commissioning the board without these adjustments may result in incorrect motor operation or failure of safety functions to activate. It is therefore recommended that the replacement be carried out by a qualified service technician with the necessary technical expertise.

This product is a fully original OEM spare part manufactured by BFT S.p.A. BFT, originating from Italy, is a well-established manufacturer globally recognized in the field of automatic gate and barrier systems, with products manufactured in Italy in compliance with international quality standards. This control board is covered by a 2-year BFT warranty, guaranteeing long-lasting and safe system operation with original production quality and components.
