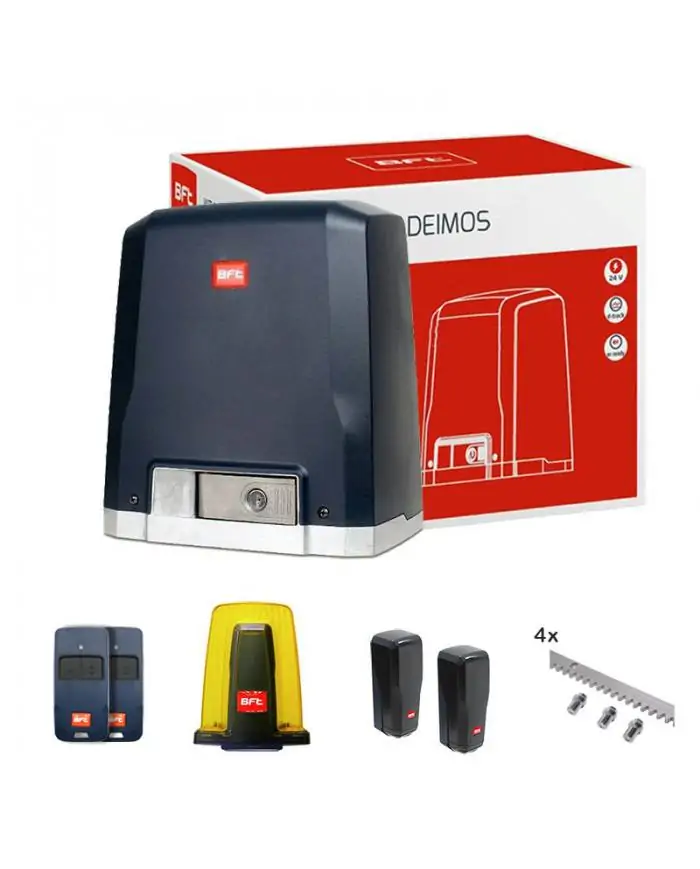

BFT Deimos AC 800 Sliding Gate Motor (XXL Kit)

Name: BFT Deimos AC 800 Sliding Gate Motor (XXL Kit)
Brand: BFT
SKU: DAC800K
Price: 17935.92 TRY
Availability: InStock

17,935.92 ₺

Tax Excl.

Fast Shipping Available

BFT Deimos AC 800 is an automation solution powered by AC motor structure, suitable for detached gates up to 800 kilograms and up to 7 meters that do not need intensive use.

Compare Add to Wishlist Shipping Information

Easy Setup

Replace with Battery-Powered Photocells 1,190.00 ₺

Pre-Programing The Motor 790.00 ₺

tune Extra Accessories

6 Modül

Kit Extras

2 Ürün

BFT Mitto Cool C2 Remote Control

BFT Mitto Cool C2 model is a new generation BFT remote control that attracts attention with its...

+ 412.62 ₺

Steel Rack Gear 8MM. (1 Meter)

The product, which we call steel rack gear, works together with the pinion gear on the sliding...

+ 414.57 ₺

Upgrade Modules

3 Ürün

Busto PT20 GSM Gate Opener Module

Busto GSM gate opening module, our PT20 model stands out with its 3000 capacity and strong signal...

+ 4,200.00 ₺

Kontal WKA2 WiFi Receiver (Dual Relay TUYA Smart Dry Contact Module)

Kontal WKA2 WiFi receiver allows you to control your automatic gate motor or barrier system with...

+ 2,520.00 ₺

Moonwell 8017 RFID Antenna + Control Unit Set (RFID System)

Moonwell with this set of 8017 RFID antenna and reader, you can set up a perfect HGS system and...

+ 18,844.22 ₺

Services

1 Ürün

Proway Q16 Liquid Grease (500 ml)

Proway Q16 liquid grease is a multi-purpose spray grease product. AAA+ quality, non-siliconized...

+ 299.90 ₺

Description

BFT Deimos 800

The BFT Deimos AC 800 sliding gate motor is the AC motorized version of the Deimos model with increased kilogram capacity for areas that do not need intensive use. Compared to the 600-kilogram model, it is a simply designed model with a much more powerful motor. However, it has disadvantages such as speed and not being suitable for intensive use. Its AC motor, long life and ergonomic architecture make the BFT Deimos 800 suitable for many regions. This product, which stands out with its price/performance balance, is perfect for the 300-600 kilo range, which we can describe as medium weight. BFT Deimos 800, which is of Italian origin and has a 2-year warranty, provides aesthetic benefits to your region with its very stylish design.

It supports gates up to 800 kilograms and up to 7 meters and offers a perfect performance for gates with these maximum values. It can offer customizable control methods such as a pushbutton, card reader, magnetic detector, Wifi or GSM module. Thanks to its flexible control card structure that supports all these operating possibilities, it can meet all kinds of needs. It is also suitable for development with BFT ecosystem modules.

Kit Package Product

Kit Package product is a product type created for those who will install from scratch and includes all accessories and assembly elements of the product. It is sold as a complete package. The package contains all the necessary parts for optimum installation. If the number of controls and gear quantity is insufficient, extra additions can be made.

Package Content:

Product Details

BrandBFT

ReferenceDAC800K

Data sheet

Energy Input	230V
Power (W)	300W
Speed	16 CM/S
Force (N)	20
Suitable for Intensive Use	No
IP Protection Class	IP24
Operating Temperature (°C MIN/MAX)	(-20) ÷ (+50)
Max. Supported Gate Weight	800 Kilogram
Max. Supported Gate Length	7 Meter

Taksit Tablosu

FAQ

How do I choose the most suitable BFT motor for my gate?

The total weight, length and daily opening frequency of your door are three important criteria. The kilogram value should be selected leaving a certain safety margin (usually 25%) and attention should be paid to the length limit. For detached locations, you should choose a 230V AC motor, and for high-traffic locations, a 24V DC motor. For more detailed information, please visit our sliding door motor selection guide or contact us for further details.

How will I open my door when the electricity goes out?

A manual override mechanism is available for all BFT sliding gate motor models. You can open the cover on the motor using the key supplied with the product, switch the motor to manual mode, and push the gate by hand.

Can I install it myself? Is it difficult?

Installation requires knowledge of welding and electricity. Incorrect installation may void the product warranty. We recommend seeking assistance from our technical team or utilising our professional installation service. Alternatively, you may purchase our pre-programming service along with the product, allowing you to engage a local welding specialist for the mechanical installation in your area while having the programming completed by us in advance. This is generally the most economical and straightforward solution.

What is the warranty period and conditions for BFT products?

BFT products, including sliding and circular door motors, barriers and industrial motors, come with a 2-year official distributor warranty, provided they are installed correctly. In the event of a fault, the product is sent to us by you, and then to the distributor. In the case of manufacturing-related issues, part replacement or repair is carried out with the distributor's approval and returned to you free of charge by us. If the issue is not covered by the warranty, a total repair cost is calculated and shipped with your approval. In addition to the warranty, it is always possible to receive repair services in this manner.
