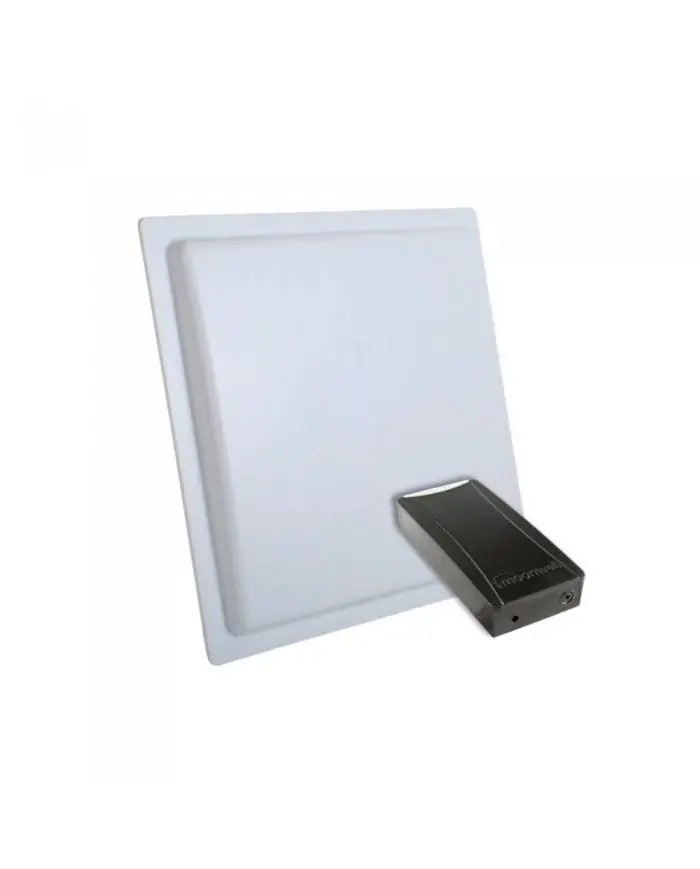

Moonwell 8017 RFID Antenna + Control Unit Set (RFID System)

Moonwell HGS System

Moonwell Our HGS set product is a 2-piece HGS system set consisting of a reader and antenna. This simple two-piece system works by the antenna detecting the RFID tag, then sending a response to the reader, and then the reader giving the open command to the engine. It can be easily installed by positioning the antenna on your gate or barrier and putting the reader inside your system. In this way, it provides a practical and economical use. You can perfectly control your entrances and exits and use your fully automatic access system for many years. 1. our Moonwell HGS system product, which consists of class material, is covered by a 2-year warranty. it has a shooting distance between 7-15 meters. It can read ISO and EPC-GEN2 compatible RFID tags. It uses TCP/IP, RS232 and RS485 communication technologies. It has adjustable antenna output power between 0-30 DEM. Built-in loop detector input and buffer are available. It consists of an integrated single antenna.

Technical Specifications:

• there is an antenna shooting distance between 7-15 meters
• Can read all ISO and EPC-GEN2 compliant RFID tags
• Uses TCP/IP, RS232 and RS485 communication technologies
• uses 868 MHz EU frequency
• Built-in loop detector input and Buffer available
• Supplied with adjustable mounting bracket
• 4.5 KG weight
• adjustable antenna output power from 0-30 DEM

Package Contents:

• Moonwell 8017 RFID Antenna
• Moonwell 8040 Control Unit
• Metal Mounting and Direction Adjustment Apparatus
• Adapter
