BFT Phobos B40 Swing Gate Motor (Double XXL Kit)

$1,071.71
Fast Shipping Available

BFT Phobos B40 model BFT is by far one of the most preferred price/performance circular gate engine products. It is the renewed model of the A40 model.

Available in Stock
SKU: BFTPH02
Description

BFT Phobos B40

It is a premium automation solution designed especially for circular gate systems, combining technology and aesthetics in a perfect balance. while offering high torque performance with its 24V DC motor, it does not compromise comfort even in high-traffic areas such as hotels, shopping malls, hospitals or office complexes thanks to its quiet operation. Phobos B40 is resistant to dust, moisture and external factors with its IP54 protection class, promising long-lasting use and minimizing the maintenance costs of businesses. Fully compatible with BFT's Smart-Tec control units, this motor provides a high level of safety with integrated safety sensors and manual opening feature in case of emergency. Its modern and compact design integrates technology without disturbing the elegant architecture of circular gates, thus adding both functional and visual elegance. Designed with energy efficiency in mind, Phobos B40 draws an environmentally friendly profile with its low power consumption and contributes to business and home economy. Thanks to its modular structure and user-friendly interface, it requires quick installation and minimal maintenance, saving time. Produced in accordance with European standards, this internationally certified product is backed by BFT's more than 30 years of industry experience and reliability. With its after-sales technical service, extensive warranty coverage and customer-oriented approach, BFT continues to add value to your projects. BFT Phobos B40 is an indispensable choice for those who want to add a smart, safe and aesthetic touch to your gate automation.

BFT Phobos B40 model is a renewed model. In this model, formerly called A40, the control unit has been completely changed and has become more practical and more suitable for integrated solutions with new functions. It is also now more environmentally friendly with new technology that saves up to %80 energy in standby mode. The new Mitto controls are even more elegant and compact.

BFT The Phobos B40 supports gateup to 700 kilograms and up to 4 meters. Although the maximum limits are stated in this way, it would be a much healthier choice to leave a margin of safety and aging %20lik in terms of kilograms. it fully opens the 90-degree angle in 16 seconds when decelerations are not active. It is a suitable choice for places with intense entry and exit. It can open and close 30 times per hour and this value can increase up to 50 times as the kilogram and quantity decreases. With mechanical locking, gate does not move when closed and provides compression during closing.

Phobos series consists of two different products. The larger model of the series, the B40 model, has higher maximum kilogram and length values. The smaller model BFT Phobos B25 is slightly lower in kilograms and length, but faster and more economical. If you think your Gateis small and this product is too big, it would be useful to take a look at the B25 model.

Kit Package Product




Kit Package product is a product type created for those who will install from scratch and includes all accessories and assembly elements of the product. It is sold as a complete package. The package contains all the necessary parts for optimum installation. If the number of controls and gear quantity is insufficient, extra additions can be made.



XXL Kit is the largest of the kit package types. It contains everything necessary for installation and extended use. Double means that there are two motors in the kit. This kit is for double swing gates.

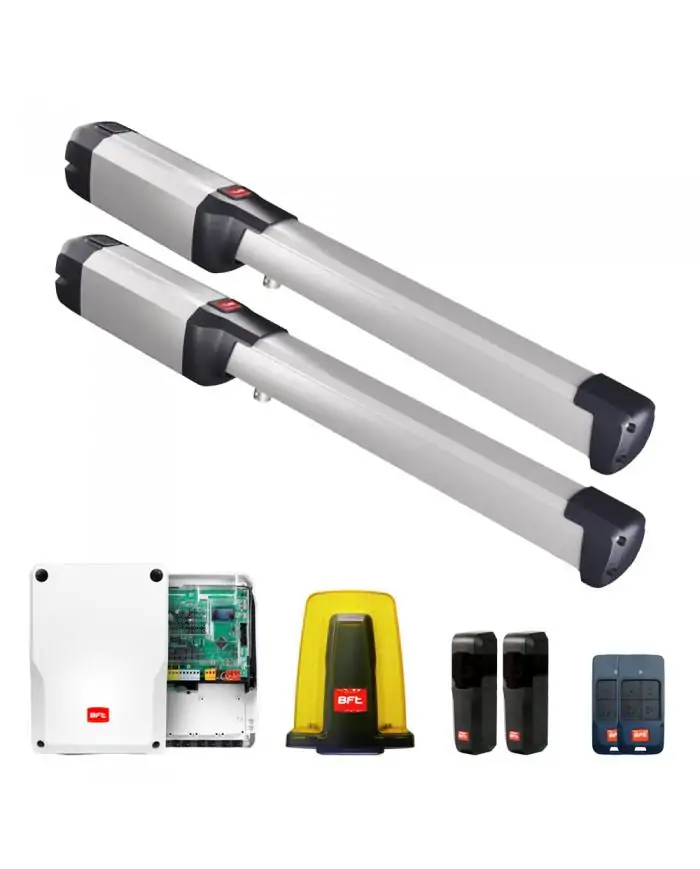

Package Contents:
  • BFT Phobos B40 Motor (2x)
  • BFT Zara BT A80 Control Unit (1x)
  • BFT Mitto Cool C4 Remote (2x)
  • BFT Radius 24V Flashing Lamp (1x)
  • BFT Compacta Photocells (1x)
  • Metal Mounting Brackets
Nice Toona 5024 Kit
Product Details
BFT
BFTPH02

Data sheet

Energy Input230V
Motor Voltage24V DC
Power (W)40 W
Speed16 Seconds for 90°
Force (N)2000 N
Suitable for Intensive UseYes
IP Protection ClassIP54
Operating Temperature (°C MIN/MAX)(-20) ÷ (+50)
Max. Supported Wing Length4 Meter
Max. Supported Wing Weight700 Kilograms
